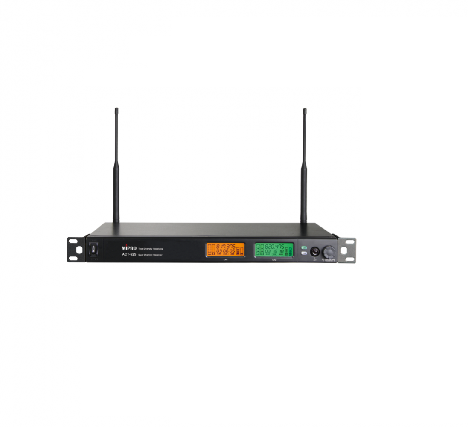

ACT 525 Dual-Channel 1U True Diversity Wireless Microphone System

Features:

• Share the EIA standard metal chassis, and a newly designed LCD, rotary control knob and buttons are equipped on the control panel which is consistent with the same operations and display modes of ACT-800 Series. The LCD screen automatically shifts colors to identify “Working” and “Standby” mode. An optional Dante network interface is available on the rear panel (ACT-525, ACT-545 only).
• Inherited the most reliable 24 MHz narrowband true diversity receiving circuit from MIPRO typical professional ACT-7 Series, which ensures long-distance and stable reception without signal dropout, and greatly decreases intermodulation distortion and increases interference-free compatible channels.
• Industry’s first “PiloTone & NoiseLock” circuits and the RF interference warning indicator for proper adjustments of the SQ level to avoid interference.
• MIPRO Auto Scan and ACT™ function provides the transmitter’s frequency with precise and rapid sync to the receiver.
• There are 7 preset groups with a total of 80 pre-saved frequencies. The user-defined group allows users to choose and save up to 16 channels from 961 available frequencies.
• Each channel has separate audio output with 3 switchable levels and presets the output level equals the sensitivity of the microphone capsule at 0 dB. All is to ensure the microphone operates within proper sensitivity and dynamic range, free from distortion.
• Optional MIPRO RCS2.Net software allows real-time network remote-controlling and monitoring up to 64 channels. Additional FSA compatible channels calculator software allows users to manually set compatible channels of any frequency band.
• Paired with ACT-500H handheld and ACT-500T bodypack transmitter.
• Designed and made in Taiwan ensures high quality and value.

Specifications:

Click here to download Mipro ACT-525 specifications

Click here to download Mipro ACT-515_525_545_user guide
